This project evaluates the impact of Action Mapping (AM) on deep reinforcement learning (DRL) algorithms for high-speed autonomous race driving. The primary goal was to enforce friction and vehicle dynamics constraints while ensuring agents could learn to complete laps efficiently and safely.

We extended the GitHub framework from the AM-RL paper (ISA Transactions 2024) that used TD3 + AM, and re-implemented the actor-critic models using DDPG and SAC with Action Mapping. The experiments were conducted on Track A in the custom race simulator.

Objectives

• Understand and replicate the Action Mapping Reinforcement Learning (AM-RL) framework
• Implement DDPG and SAC as alternate agents within the same setup
• Compare lap time, constraint satisfaction, and learning stability across methods

Simulation & State Design

• Environment: Custom Python-based simulator using bicycle model dynamics
• Observations:
  • 12 future curvature points from the centerline
  • Velocity, yaw rate, orientation, steering angle, and track deviation
• Action Space: Virtual actions ∈ [−1, 1]² → throttle & steering angle
• Constraints: Friction cone and lateral acceleration safety bounds

Neural Networks

Actor Networks

• Fully connected with 2 hidden layers (256–256 units)
• Activation: ReLU (hidden), Tanh (output)
• Output: Unconstrained actions (steering, throttle) passed to AM module

Critic Networks

• Two Q-functions for SAC (double critic)
• One Q-function for DDPG
• Each accepts state-action pair and outputs scalar Q-value

Loss Functions

• DDPG: MSE loss on predicted Q-values
• SAC: Adds entropy regularization and automatic temperature tuning

Action Mapping (AM)

• State-aware mapping transforms virtual actions to safe, real-world controls
• Implemented as a lookup-based mapping based on track geometry and physics
• Ensures compliance with dynamic tire-road constraints (Fₓ, Fᵧ within friction ellipse)

Results Summary

DDPG with Action Mapping (AM)

• Learned a stable and smooth racing policy
• Consistently finished laps on Track A
• Lap 1 Time: 43.57s
• Lap 2 Time: 41.7s
• Maintained safety constraints with no friction violations
• Approached TD3-level performance from literature

TD3 vs DDPG Lap Comparison

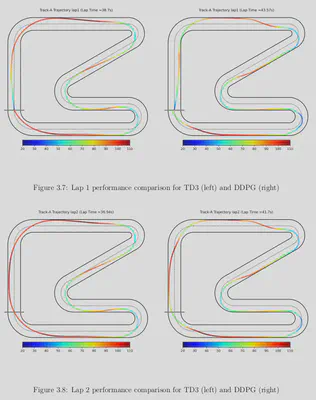

Below is a side-by-side comparison of TD3 (left) and DDPG (right) for both Lap 1 and Lap 2 on Track A. Color encodes speed (m/s).

Figure: Lap 1 and Lap 2 performance comparison — TD3 has tighter trajectories and better cornering speed than DDPG.

SAC with Action Mapping (AM)

• Frequently failed to complete laps (DNF)
• Produced two common failure modes:
  • Prioritizing speed → unstable cornering and off-track behavior
  • Prioritizing stability → very slow but accurate turns
• Final policies were inconsistent and fragile
• Highly sensitive to reward scaling and actor update frequency

Figure: SAC Lap 1 — Left: high speed, low stability; Right: better track alignment, very low velocity.

Key Comparison Table

Resources

• 📄 Final Report PDF
• 🔗 Link to Original Paper
• 🔗 GitHub Repo

This project demonstrates how Action Mapping serves as a universal safety wrapper that can be applied across different DRL algorithms. Our experiments showed that DDPG performs competitively against TD3 in constrained driving, while SAC struggled to converge due to reward instability — emphasizing the importance of choosing the right policy architecture for safety-critical RL tasks.
